Chauvet P160RGBW 160W RGBW Parcan
  • Chauvet P160RGBW 160W RGBW Parcan
  • Chauvet P160RGBW 160W RGBW Parcan
Chauvet P160RGBW 160W RGBW Parcan

Chauvet P160RGBW 160W RGBW Parcan

R 10,149.00
Taxes included. Shipping calculated at checkout.

Chauvet P160RGBW 160W RGBW Parcan

Description

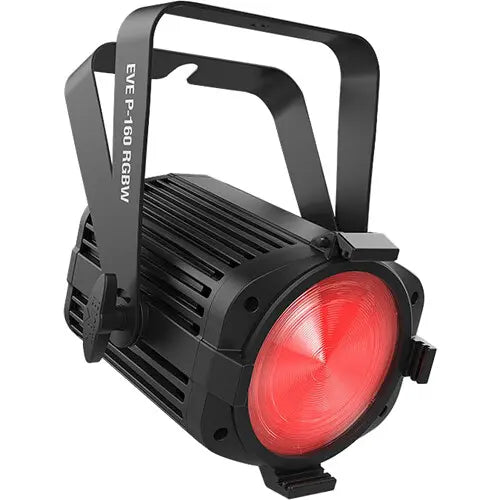

The CHAUVET DJ EVE P-160 RGBW is a high-powered, silent-operating PAR wash light designed for professional stage, studio, and video lighting. Equipped with 61 vibrant RGBW LEDs and delivering up to 4880 lumens of full-spectrum output, this 160-watt fixture offers remarkable flexibility for color mixing and precise white temperature control (2700K to 6500K).

Ideal for broadcast or live environments, the EVE P-160 RGBW features a fanless design for completely silent operation and flicker-free performance, thanks to high-frequency PWM dimming. It supports both wired and wireless DMX control via optional D-Fi USB transceiver and includes interchangeable magnetic lenses to quickly adapt the beam angle from 25°, 35°, or 45°, with corresponding field angles.

Whether used in standalone mode or linked via DMX, this versatile wash light includes auto programs, strobe effects, sound activation, and Master/Slave control. Its robust cast-aluminum housing and dual-yoke bracket support mounting on truss or use as a floor stand. With powerCON in/out and the ability to daisy-chain up to 11 units (at 120V), the EVE P-160 RGBW is ready for high-demand lighting applications.

Features

  • 160W RGBW LED engine with 61 total diodes for intense color and white output

  • Fanless convection cooling for 100% silent operation – perfect for studios or quiet venues

  • Flicker-free operation (2 kHz PWM) ideal for film and video production

  • Adjustable white color temperature: 2700K–6500K to match ambient or fixture lighting

  • Magnetic lens system allows quick change between beam angles (25°, 35°, 45°)

  • Standalone, DMX, Master/Slave, auto, and sound-activated modes

  • 3 DMX channel modes (4, 6, 11) for versatile control

  • Color macros and built-in effects, including variable-speed strobe

  • 0–100% smooth electronic dimming

  • PowerCON I/O and daisy-chain capability (up to 11 units @ 120V or 21 @ 230V)

  • USB port for optional D-Fi USB transceiver – enables wireless DMX or Master/Slave control

  • LED display with 4-button menu for intuitive onboard navigation

  • Dual-yoke bracket for truss or floor use

  • Includes gel frame and supports 6.25" accessories like barn doors (sold separately)

  • Rugged cast aluminum housing with compact, lightweight design

Specifications



Light Source

  • 61 RGBW LEDs:

    • 14 Red

    • 13 Green

    • 14 Blue

    • 20 White

  • Total Power: 160W (3.8 A)

  • LED Life Expectancy: 50,000 hours

  • Lumen Output: 4880 lumens

  • Color Temperature: Adjustable from 2700K to 6500K

  • Color Rendering Index (CRI): 80

Optics

  • Beam Angles: 25°, 35°, 45° (with included magnetic lenses)

  • Field Angles: 50°, 63°, 85°

  • Photometric Output:

    • 23°:

      • 3442 Lux @ 2m / 319.8 fc

      • 519 Lux @ 5m / 48.2 fc

    • 35°:

      • 2414 Lux @ 2m / 224.3 fc

      • 386 Lux @ 5m / 35.9 fc

    • 48°:

      • 1310 Lux @ 2m / 121.7 fc

      • 211 Lux @ 5m / 19.6 fc

Dimming & Effects

  • Dimming: 0–100% electronic dimmer

  • Strobe Rate: 0 to 33 Hz

  • Effects:

    • Variable-speed strobe

    • Color macros

  • Flicker-Free Output: 2 kHz PWM frequency

Control

  • Control Modes:

    • DMX

    • Standalone

    • Sound-Active

    • Automatic

    • Master/Slave

  • DMX Channel Modes: 4 / 6 / 11 channels

  • Control Protocol: DMX512

  • Display: LED screen with 4-button interface

  • Wireless DMX: D-Fi USB compatible (transceiver sold separately)

Connectivity

  • DMX In/Out:

    • 1 x 3-pin XLR In

    • 1 x 3-pin XLR Out

    • 1 x 5-pin XLR In

    • 1 x 5-pin XLR Out

  • USB Port: For optional D-Fi USB transceiver

  • Power Connectors:

    • 1 x powerCON input

    • 1 x powerCON output

Power

  • Input Voltage: 100–240V AC, 50/60 Hz (auto-ranging)

  • Power Consumption:

    • 122W @ 120V

    • 121W @ 230V

  • Fuse: 2 A, 250 V

  • Power Linking:

    • Up to 11 units @ 120V

    • Up to 21 units @ 230V

Physical & Mounting

  • Cooling: Fanless, convection cooled

  • Mounting Options: Dual-yoke bracket for truss or floor use

  • Accessory Mount: 6.25″ accessory slot for gel frame/barn doors

  • Included Accessories: Gel frame

  • Exterior Color: Black

  • Construction: Cast aluminum housing

Environmental & Compliance

  • Operating Temperature: Up to 104°F / 40°C

  • IP Rating: None (for dry indoor use)

  • Certifications: CE, MET, RoHS

Dimensions(Box)

305 × 245 × 220 mm

Weight

3.6 kg
