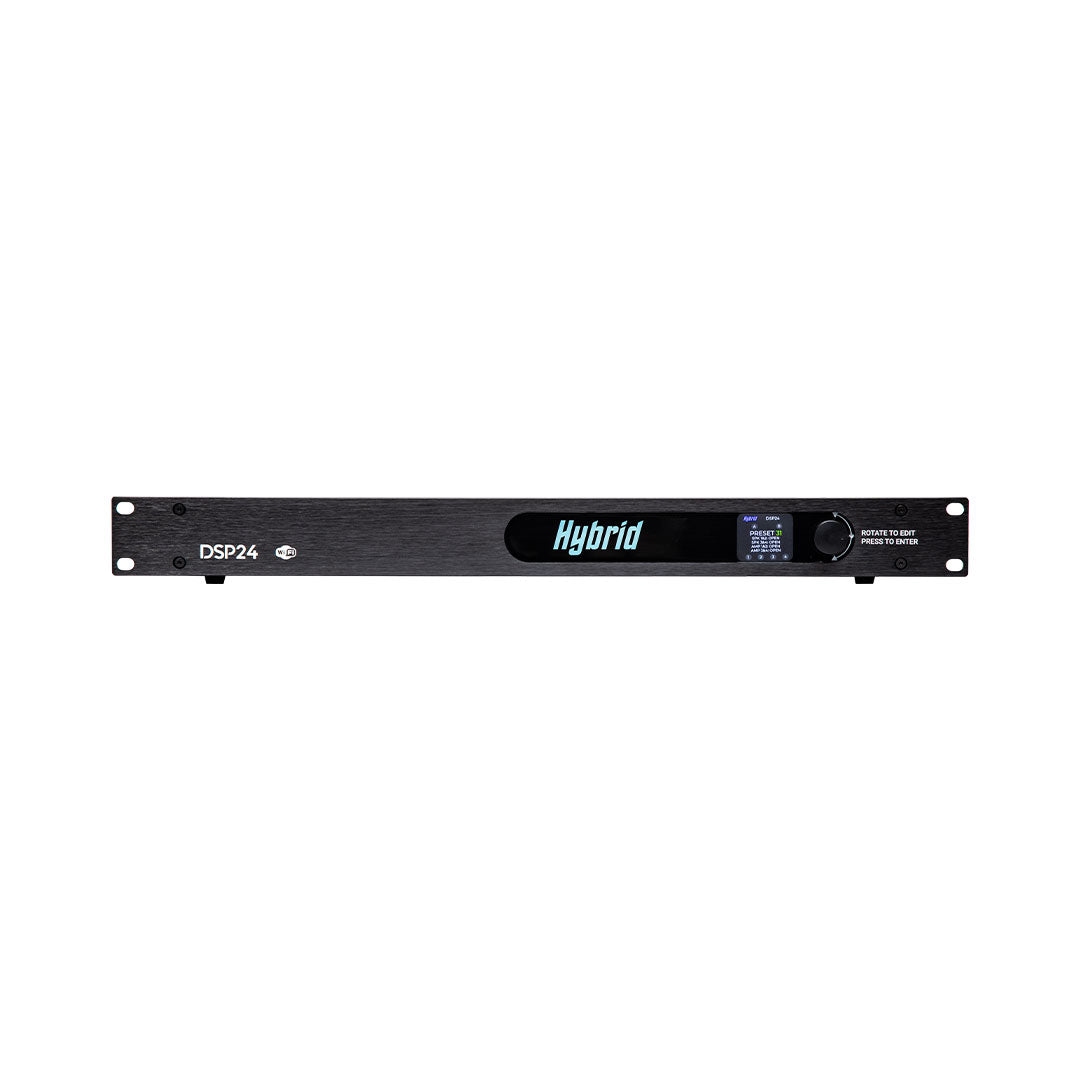

Hybrid DSP24 – 2 In / 4 Out Speaker Management Processor
R 2,148.00
Taxes included.
Shipping calculated at checkout.
Hybrid DSP24 – 2 In / 4 Out Speaker Management Processor
Description
SKU: PROHYB002
The Hybrid DSP24 is a professional 2-input, 4-output speaker management processor designed to replace conventional analog crossovers, EQs, and limiters in modern PA systems.
With a mix of editable, non-editable, and preset configurations, the DSP24 is engineered to suit both beginner and advanced users alike. It’s loaded with 27 pre-configured Hybrid presets and 2 fully editable user slots, allowing precise control for tuning your system—whether in fixed installation, mobile DJ, or touring setups.
Ideal for optimizing loudspeaker performance in conjunction with Hybrid and Hybrid+ amplifiers and speaker systems.
Features
-
2 Inputs / 4 Outputs
-
Electronically balanced XLR connections
-
Linked Left/Right input configuration
-
-
Pre-loaded Presets
-
27 non-editable Hybrid presets
-
3 partially editable presets
-
2 fully editable user presets
-
-
Flexible EQ & Filtering
-
4-band input PEQs with selectable filters: high/low shelf, notch, HPF, LPF
-
8-band output PEQs per stereo pair
-
Switchable between PEQ and 30-band graphic EQ
-
HPF/LPF options with Linkwitz-Riley, Butterworth, or Bessel filters (6–24 dB/oct)
-
-
Time Alignment & Phase
-
Delay up to 15ms on stereo output pairs
-
Phase invert for all outputs
-
-
Limiters & Protection
-
Per-output limiter with attack, release, and threshold control
-
Independent output mute function
-
Electronic earth-lift for ground loop prevention
-
-
Software Control via Smart Device or PC
-
Load/save presets, update firmware, set passwords, and customize LED logo
-
Specifications
| Parameter | Value |
|---|---|
| Inputs | 2 × XLR (Electronically Balanced) |
| Outputs | 4 × XLR (Electronically Balanced) |
| Input Impedance | 20 kΩ @ 1 kHz |
| Max Input Level | +20 dBu |
| Output Impedance | 100 Ω @ 1 kHz |
| Max Output Level | +20 dBu |
| Dynamic Range (Input) | 100 dB |
| Dynamic Range (Output) | 104 dB typical |
| THD + Noise | 0.005% @ 0 dBu |
| Frequency Response | 10 Hz – 35 kHz (±3 dB) |
| Resolution | 24-bit Delta-Sigma |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | <10 W |
| Fuse Rating | 250 mA |
| Mains Connector | Standard IEC Receptacle |
Dimensions & Weight
-
Product Dimensions (H × D × W): 45 × 127 × 483 mm
-
Shipping Dimensions (H × D × W): 70 × 85 × 560 mm
-
Net Weight: 1.6 kg
-
Shipping Weight: 2.0 kg
