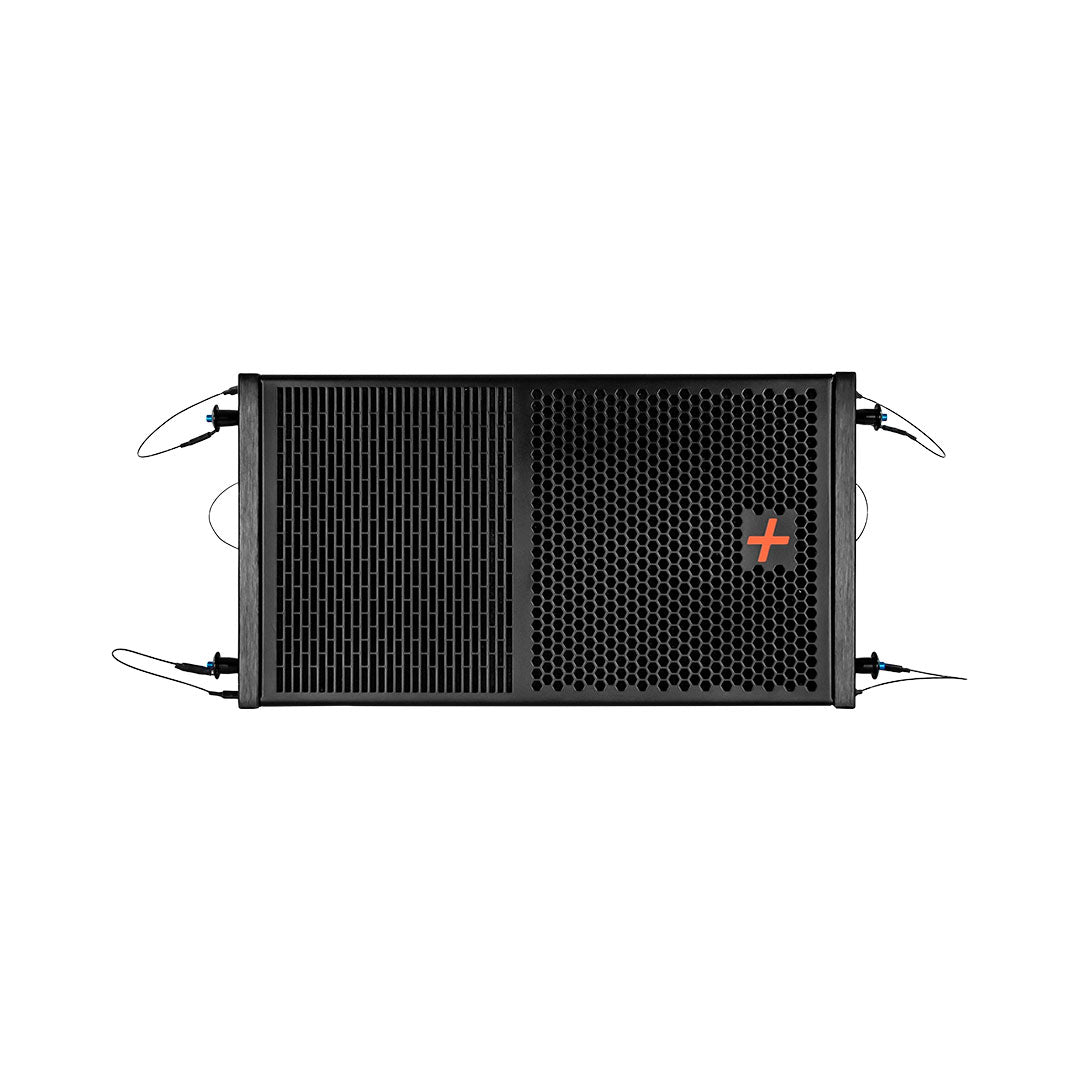

Hybrid+ PLA10 – 10″ Passive 2-Way Line Array Speaker

Description

SKU: SPEHYB068

The Hybrid+ PLA10 is a professional-grade passive 10″ 2-way line array speaker, designed for high-performance sound reinforcement in both indoor and outdoor applications.

Crafted from premium birch plywood and finished in UltraTex V3 textured paint, the PLA10 delivers powerful output, clear vocal projection, and refined tonal balance — making it suitable for mobile setups, corporate events, worship venues, and touring rigs.

With its compact size, high SPL, and versatile mounting options, it supports pole mounting, ground stacking, or flying up to 16 cabinets in an array.

Features

• Compact, High-Output Line Array Cabinet
  10″ woofer with 1.5″ HF driver delivers wide frequency response and high sensitivity (99 dB SPL).

• Premium Build & Finish
  Constructed from void-free 15 mm birch plywood with tongue-and-groove assembly and coated with UltraTex V3 water-resistant black paint for durability and aesthetics.

• Rigging-Ready for Any Setup
  Integrated 4-point fly hardware supports flying arrays up to 16 cabinets or ground stacks of up to 4. Includes dual-angle 35 mm pole mount (0° & 10°).

• Advanced Acoustic Components
  Features custom CELTO Acoustique LF and HF drivers — waterproof fiber-loaded cones, die-cast chassis, and high-grade ferrite magnets for world-class audio quality.

• Audiophile-Grade Passive Crossover
  Built-in 1400 Hz phase-compensated crossover with 18 dB/octave slopes ensures smooth, natural transitions between drivers.

Specifications

• Type: Passive 2-way line array

• LF Driver: 10″ CELTO Acoustique 10MB300-16

• HF Driver: CELTO ACD45 1.5″ with 1.7″ voice coil

• RMS Power Handling (AES): 300 W (LF) + 80 W (HF)

• Impedance: 16 Ω

• Sensitivity: 99 dB (1 W/1 m)

• Max SPL: 124 dB RMS / 130 dB Peak

• Frequency Response: 56 Hz – 20 kHz

• Dispersion: 90° (H) × 10° (V) — array curvature dependent

• Crossover: Passive, 1400 Hz, 18 dB/oct

• Connectors: 2 × NEUTRIK NL4MP

• Cabinet Material: 15 mm Birch Plywood

• Finish: UltraTex V3 (3-coat black textured paint)

• Grille: 2-tone, 1.2 mm black powder-coated steel

• Mounting:

  • Integrated 4-point rigging system

  • Dual-angle (0° / 10°) 35 mm pole mount

Dimensions & Weight

• Dimensions (W × H × D): 510 × 278 × 420 mm

• Weight: 22 kg
