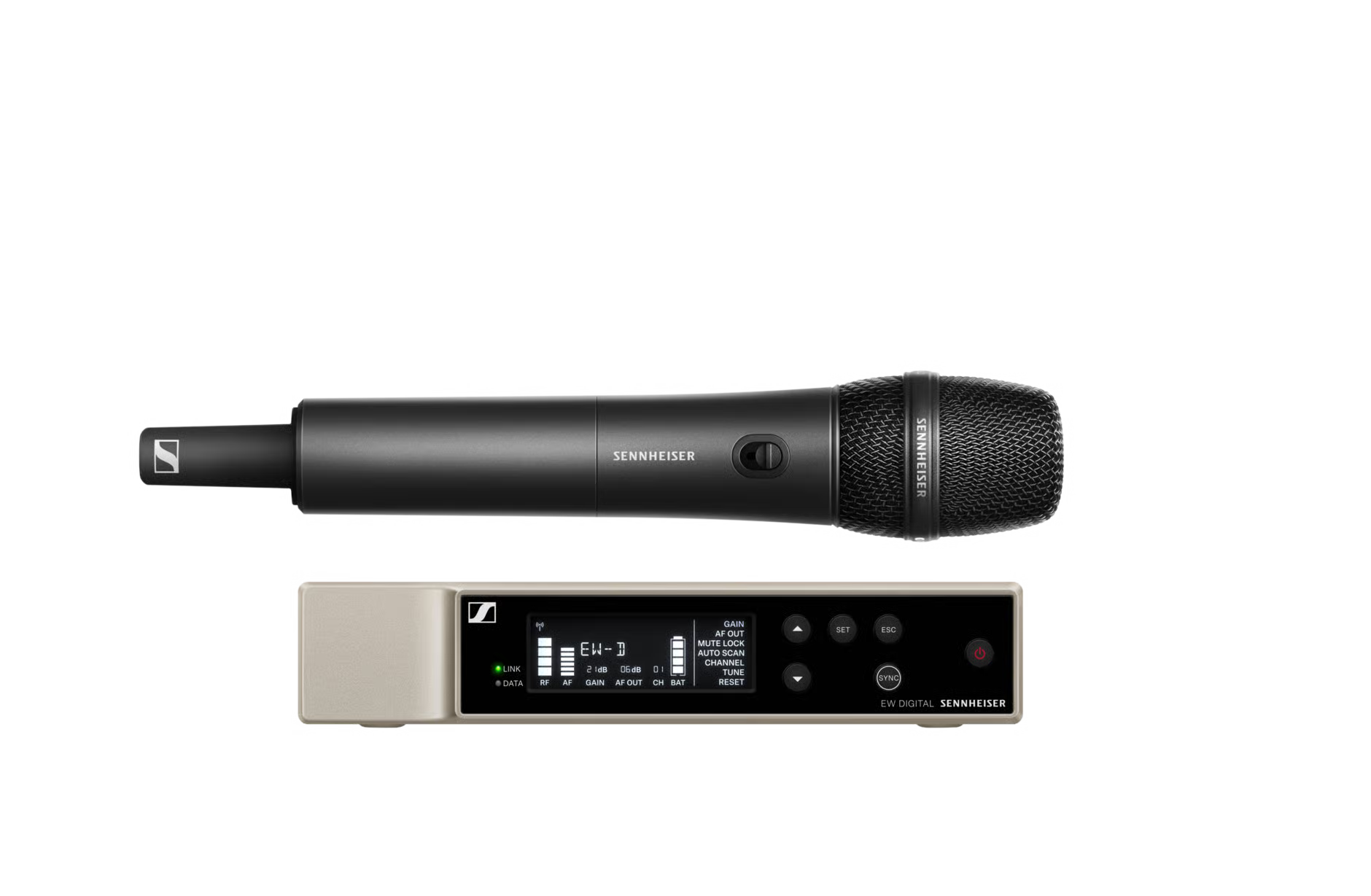

Sennheiser EW-D 835-S Set

Description

All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser's renowned e 835 capsule.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications

• System Specs

  • Wireless Technology: Digital UHF

  • RF Frequency Band: 470.2–526 MHz (Q1‑6)

  • RF Bandwidth: 56 MHz

  • Frequency Step Size: 25 kHz

  • RF Channel Scanning: Auto‑Scan

  • Max Transmitters per Band: 90

  • Bluetooth: BLE 5.1, ~120 ft / 36.6 m range for app control & sync

  • Sample Rate / Resolution: 24-bit

  • Latency: 1.9 ms

  • Dynamic Range: 134 dB

  • Number of RF Frequencies: Up to 2,240 selectable

  • Maximum Operating Range: Up to 100 m (line of sight)

  ---

  Receiver (EW-D EM)

  • Type: Tabletop / 1-RU rackmount

  • Antennas: Two rear-mounted ¼-wave rod (BNC)

  • Audio Outputs:

    • 1× XLR male (balanced): up to +18 dBu

    • 1× ¼″ TRS unbalanced: up to +12 dB

  • Gain Range: –3 to +42 dB (3 dB steps)

  • Frequency Response: 20 Hz – 20 kHz

  • RF Output Power: 10 mW EIRP

  • Power: AC/DC adapter (11–13 V DC at 300 mA)

  • Display: OLED (shows AF level, frequency, mute, RF level, battery status)

  • Housing: Metal

  • Operating Temperature: –10° to +55°C

  • Dimensions: 212 × 44 × 189 mm

  • Weight: ~1 kg (without antennas/power supply)

  ---

  Transmitter (EW-D SKM-S + MMD 835)

  • Type: Handheld transmitter, internal antenna

  • RF Output Power: Up to 10 mW (ERP/EIRP, depending on region)

  • Controls: Mute switch, LEDs for Mute & Sync

  • Audio Input Level: 2 to 4.35 V RMS

  • Power Options:

    • 2× AA batteries (alkaline): ~8 hrs

    • Sennheiser rechargeable battery pack: ~12 hrs

  • Dimensions:

    • With capsule: 50 × 268 mm

    • Without capsule: 40 × 200 mm

  • Weight:

    • ~304 g (with capsule)

    • ~195 g (without capsule)

  ---

  Microphone Capsule (MMD 835)

  • Type: Dynamic, cardioid polar pattern

  • Sensitivity: 2.1 mV/Pa

  • Max SPL: 154 dB SPL

  • Equivalent Noise Level: 32 dB

  • Frequency Range: 20 Hz – 20 kHz (–3 dB point)

Dimensions

 520 × 350 × 120 mm

Weight

3.5 kg
