Wharfedale Pro DP-4035i - 4-Channel Installation Amplifier

Name: Wharfedale Pro DP-4035i - 4-Channel Installation Amplifier
Brand: Wharfedale
SKU: WHAR-DP 4035I
Price: 17099.00 ZAR
Availability: InStock

Description

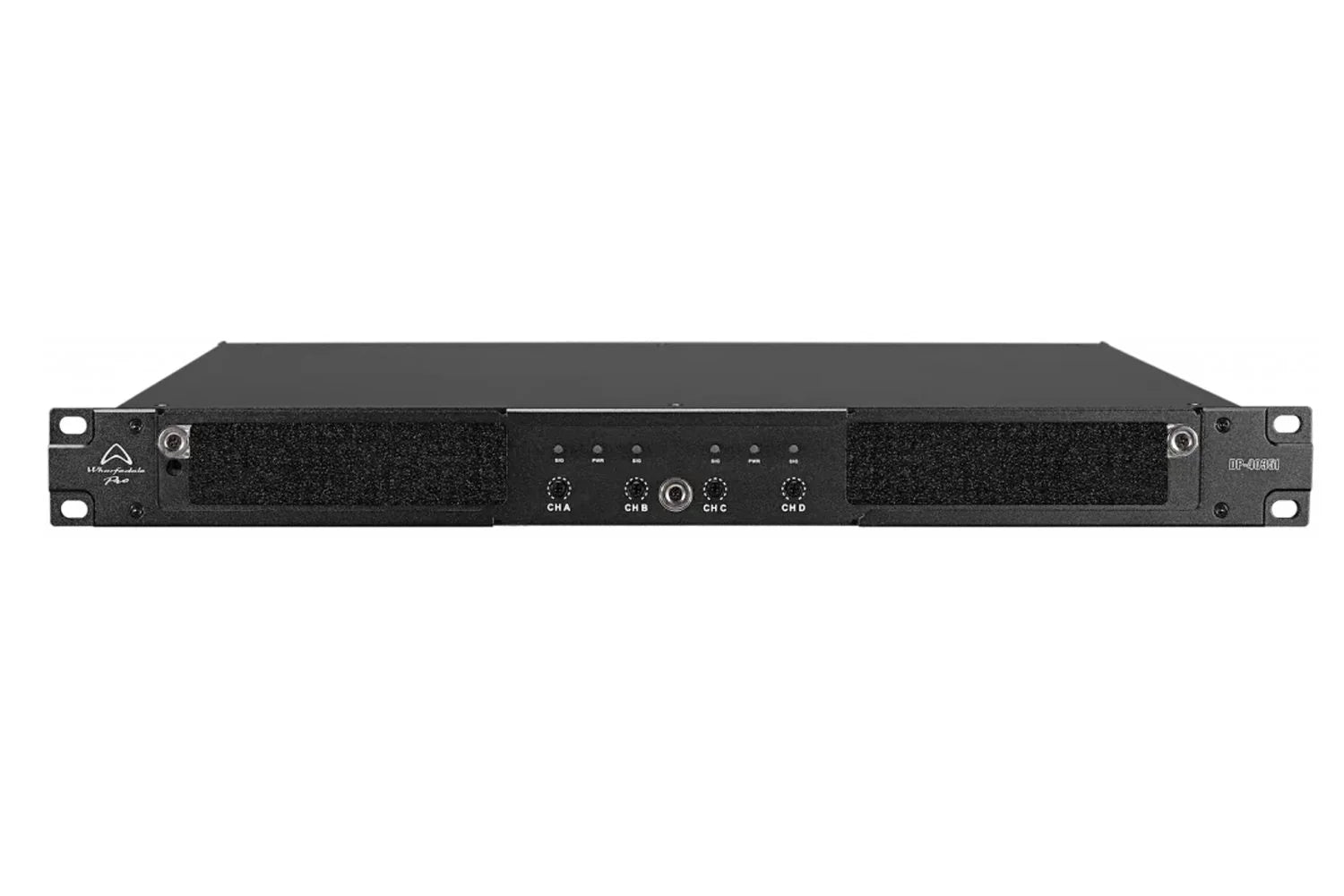

The DP-4035i is a versatile 4-channel installation amplifier designed for both low and high impedance (100 V / 70 V) systems.

It delivers up to 765 W per channel at 2 Ohms, features remote volume control via GPIO, tamper-proof design, wide AC input range, and built-in power factor correction for stable, efficient performance in demanding environments.

Features

Tamper-proof removable front grille (magnetic)
Rear panel Phoenix connectors for easy install and remote volume control
GPIO for remote ON/OFF and linking
Wide AC input range for stable operation with fluctuating power
Power Factor Correction (PFC) for efficiency and power stability
Mode switch allows selection between low impedance and high impedance (100 V/70 V) operation
Supports up to 80 i8T loudspeakers at 100 V (20 per channel tapped at 25 W)
Built-in HPF (40 Hz) when in Hi-Z mode to prevent transformer saturation
Limiters automatically set for 70 V/100 V output

Specifications

Channels: 4
Power Output (per channel):
- 8 Ω Stereo: 4 × 450 W
- 4 Ω Stereo: 4 × 765 W
- 2 Ω Stereo: 4 × 765 W
Bridged Power Output:
- 16 Ω Bridged: 2 × 900 W
- 8 Ω Bridged: 2 × 1530 W
- 4 Ω Bridged: 2 × 1530 W
Hi-Z Output:
- 100 V Hi-Z: 4 × 765 W
- 70 V Hi-Z: 4 × 450 W
Input Connectors: Phoenix MC 1,5/12-ST-3,81
Output Connectors: Phoenix PC 5/8-STF1-7,62
Remote Level Control: Phoenix MC 1,5/12-ST-3,81 (10 kΩ potentiometer support)
GPIO (Remote ON/OFF – Link): Phoenix MC 1,5/6-ST-3,81
Mode Switch Options: LO-Z, HI-Z 100 V, HI-Z 70 V, MONO-BRIDGE
Input Sensitivity Switch: 1 V (35 dB), 0.775 V (38 dB)
THD + Noise: Typically 0.05% (10% rated power, 8 Ω)
Frequency Response:
- Lo-Z, 8 Ω: ±0.5 dB (20 Hz–20 kHz)
- Hi-Z: ±0.5 dB (40 Hz–16 kHz)
Cross-Talk: ≥90 dB (20 Hz–1 kHz, below rated power)
Input Impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
Damping Factor: ~300 (20 Hz–200 Hz, Lo-Z, 8 Ω)
Signal-to-Noise Ratio (SNR): ≥100 dB (A weighted, 20 Hz–20 kHz, 8 Ω)
Main Power Supply: 100–240 V AC ±10%, 50/60 Hz
Protection Features: Under-voltage, DC, over-temperature, limiter, overload, short circuit

Dimensions

483 × 45 × 370 mm

Weight

8.4 kg
