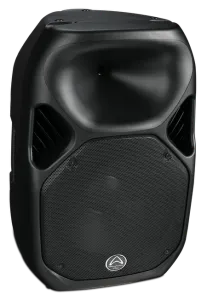

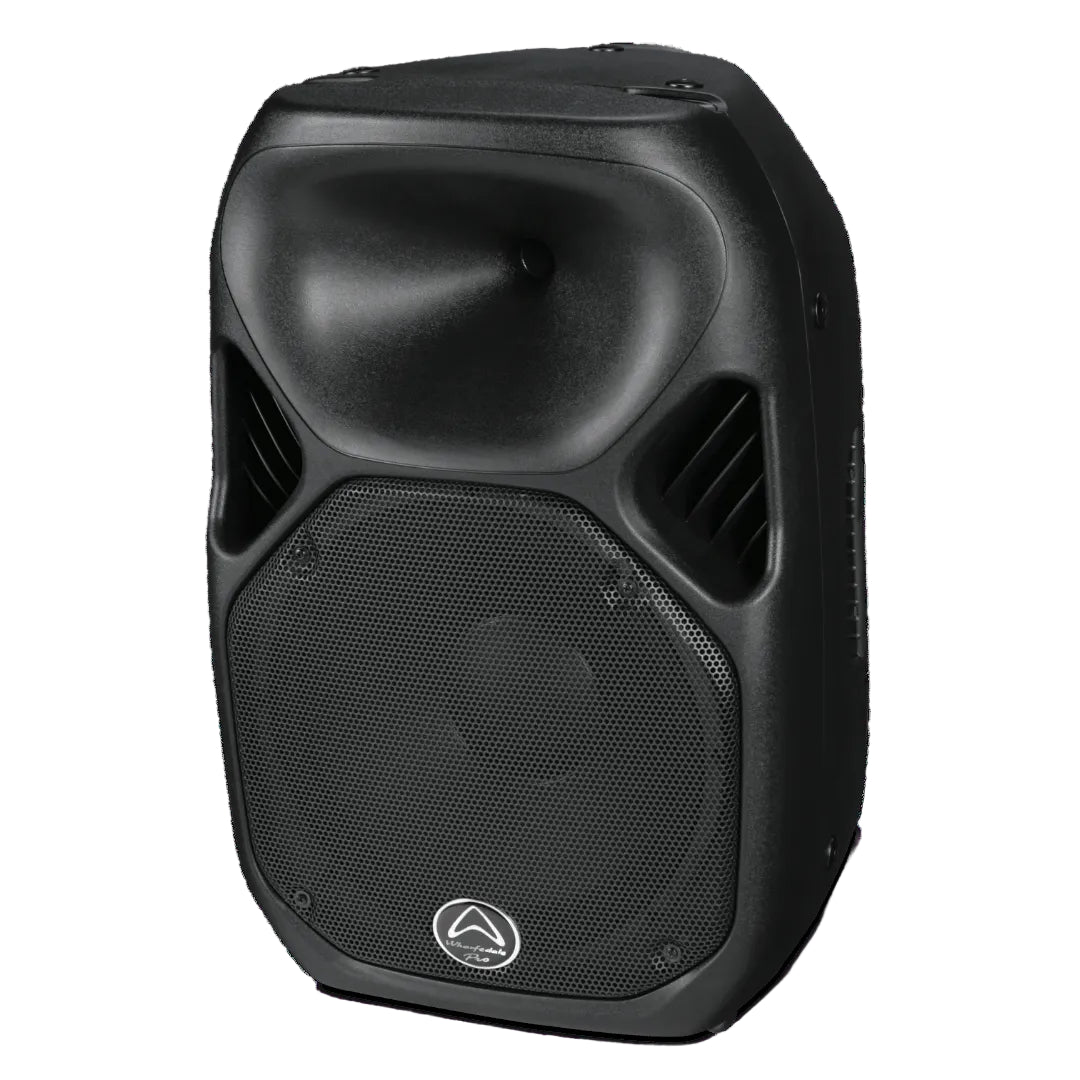

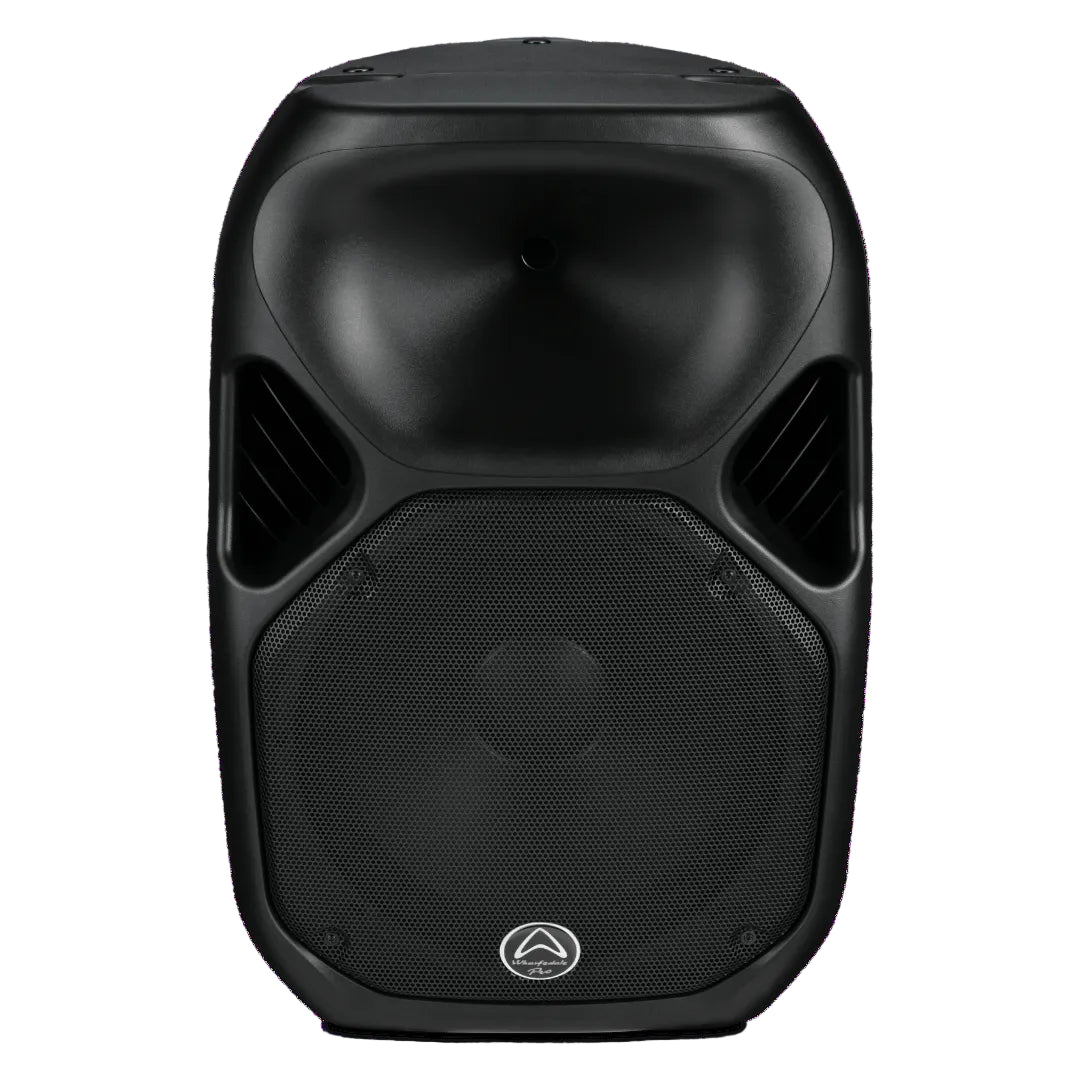

Wharfedale Titan-AX12 - 12" Bi-Amplified Active Loudspeaker

Description

Smart Power. Lightweight. Built for the Road.

The Titan-AX12 is a lightweight yet powerful 12″ active loudspeaker, designed for live sound, DJs, and installations.

Featuring Wharfedale's custom IRIS-X drivers, a 6-position DSP, and fanless convection cooling, the AX12 delivers detailed, high-output audio with durability that stands up to the toughest gigs—all in an IP54-rated polypropylene enclosure.

Features

• 600W peak / 300W continuous bi-amplified power

• 12″ LF driver with 2.5″ voice coil

• 1.75″ IRIS-X titanium HF compression driver

• Max SPL: 128dB

• 6-position DSP with user-defined EQ presets

• Wide Hybrid Symmetry Horn (100° x 80°)

• Fanless convection cooling – ultra quiet, highly reliable

• IP54 certified – dust- and splash-resistant

• Durable and lightweight polypropylene enclosure

• Integrated rigging points and 35mm pole mount

Specifications

• System Type: 12″ 2-way Bi-Amplified Active Loudspeaker

• Peak Power: 600W (LF: 500W, HF: 100W)

• Continuous Power (RMS): 300W (LF: 250W, HF: 50W)

• Maximum SPL: 128dB

• Frequency Response (±3 dB): 55Hz – 20kHz

• Frequency Range (–10 dB): 50Hz – 20kHz

• LF Driver: 12″ with 2.5″ voice coil

• HF Driver: 1.75″ titanium diaphragm compression driver

• Nominal Coverage: 100° (H) × 80° (V)

• DSP: 6 user presets

• Input Connectors: 2 × XLR & 2 × ¼″ jack (mic/line switchable)

• Output Connector: Switchable LOOP/MIX balanced XLR

• Cooling: Fanless (convection cooled)

• Ingress Protection: IP54 certified

• Mounting Options:

  • 10 × M8 rigging points

  • 35mm pole socket with locking screw

• Handles: 2 side handles

• Enclosure: Injection-moulded polypropylene

• Grille: 1.2 mm steel

• Color Options: Black or White

• Net Weight: 12.4 kg (27.3 lbs)

Dimensions

 582 × 384 × 318 mm

Weight

16 kg
