Wharfedale WLA-210X - Dual 10” Passive Line Array Speaker

Description

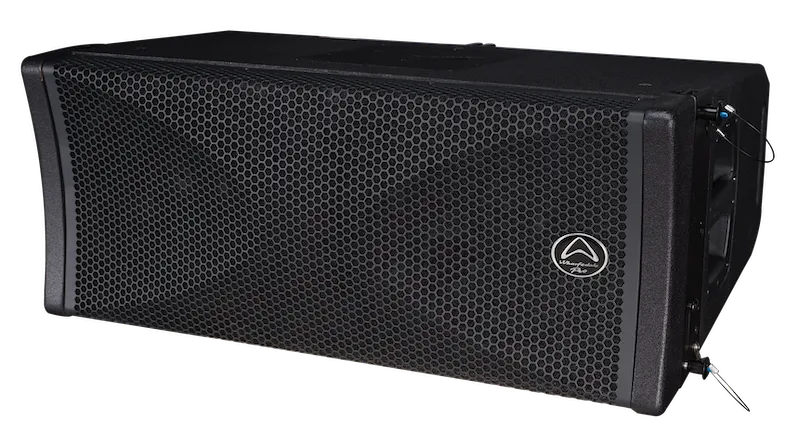

The WLA-210X delivers a powerful combination of dual 10″ custom LF drivers and a 3″ neodymium HF compression driver, engineered for professional line array applications.

Offering high SPL (up to 138 dB), precise 100° x 10° coverage, and bi-amp/passive switchable modes, this cabinet is ready for both touring and fixed installs.

The integrated side plate rigging system supports up to 12 units in a flown array, while optimized ground stacking allows flexible deployment using WLA-210XSUBs as a base.

Built with birch plywood and finished in Rhino Black, the WLA-210X is road-ready, rugged, and built to perform.

Features

• 2 x 10″ LF custom Wharfedale Pro drivers

• 3″ Neodymium HF compression driver with titanium diaphragm

• 138 dB Max SPL @ 1 meter (HF)

• 100° x 10° waveguide coverage

• Switchable Passive or Bi-Amp operation

• Built-in side plate rigging system (0° to 10° angles)

• Rhino Black birch plywood enclosure (15 mm / 18 mm)

• Tour-grade steel grille (1.2 mm thick)

• Compatible with optional WLA-210X fly frames and tour bags

• Designed for use with Versadrive DSP and DP-N FIR amplifiers

Specifications

General

• Model: WLA-210X

• System Type: Passive

• Configuration: Two-way, dual 10″ line array element

• Mode Switching: Bi-amp / Passive

• Crossover Frequency: 1.5 kHz

• Nominal Coverage: 100° (H) x 10° (V)

Frequency & Output

• Frequency Response (±3 dB): 65 Hz – 20 kHz

• Frequency Range (-10 dB): 60 Hz – 20 kHz

• Sensitivity (2.83V / 1 m): 102 dB

• Max SPL @ 1 meter (Calculated):

  • LF: 135 dB

  • HF: 138 dB

Power Handling

• LF AES Power: 2 x 400 W

• HF AES Power: 80 W

• LF Program / Peak Power: 1600 W / 3200 W

• HF Program / Peak Power: 180 W / 360 W

• System Continuous Power: LF: 800 W / HF: 90 W

• System Impedance: 16 Ω total (LF: 2 x 8 Ω, HF: 8 Ω)

Drivers

• LF Drivers: 2 x 10″ (260 mm) custom Wharfedale Pro

  • Voice Coil Size: 65 mm / 2.5″

• HF Driver: Neodymium compression driver

  • Voice Coil Size: 75 mm / 3.0″

  • Diaphragm Material: Titanium

  • Exit Size: 35.56 mm / 1.4″

Cabinet Construction

• Material: 15 mm / 18 mm Birch Plywood

• Finish: Rhino Black Paint

• Grille: 1.2 mm black steel

• Rigging: Integral side plate adjustable (0° to 10°)

Connectors

• Input Connectors: 2 x speakON-compatible

Dimensions

• Unpacked Dimensions:

  • Height (Front): 314 mm

  • Height (Rear): 240.2 mm

  • Width: 760 mm

  • Depth: 504 mm

Dimensions

404 x 855 x 594 mm

Weight

38.5 kg
